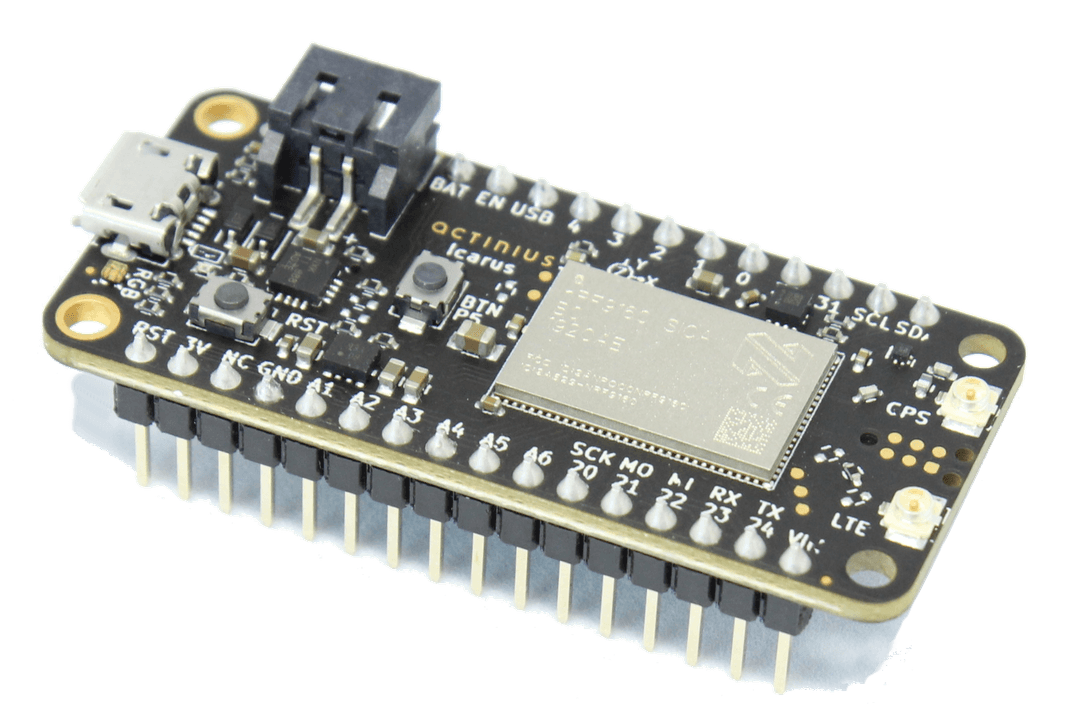

Icarus IoT Board v2

The Icarus is a cost-effective cellular IoT board in Adafruit's Feather(Wing) form factor. It is built around Nordic Semi's nRF9160 (GEN2) modem and combines LTE-M, NB-IoT, GPS, accelerometer, SPI Flash, USB, LiPo charger as well as an eSIM with free data out of the box and a nano SIM connector. Control, monitor and keep track of any asset, fleet or cargo, quickly and easily using this pre-certified device!

Pin format:

€112,95 (excl. VAT)

Get informed when we restock

You can pay with

Add to Cart
Stock level:
In stock
Also available on

Secure checkout with

More info

What Icarus is good at

GPS and Cellular data on the go

Equipped with the new nRF9160 modem from Nordic Semiconductor, the Icarus board integrates GPS and Cellular data (LTE-M / NB-IoT) all in one.

3 Months of Free LTE-M & NB-IoT Data

The Icarus includes an eSIM with 10MB of free data for 3 months, so you can start testing your prototype immediately (*only in supported countries). After your free trial ends you can choose to get a subscription on actinius.io or use your own nano SIM!

Use the Icarus anywhere, anytime

Power comes in three: the Icarus board has input for a LiPo/Li-Ion battery (with charger!), USB, and Solar Panel input so that you can use the Icarus anywhere and anytime.

FeatherWing Form Factor Compatible

You can install extra components to the extension pins, easily of course. Don’t forget! Icarus is form factor compatible with Adafruit Featherwing also.



ProcessingARM® Cortex M33
1 MB Flash
256 kB RAM

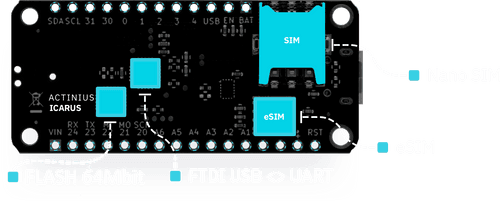

ConnectivityNano SIM and Embedded SIM
LTE Cat-M1
LTE Cat-NB1 aka NB-IoT
Global coverage
PSM and eDRX are supported

SecurityARM® Trustzone®
ARM® Cryptocell 310
Supported by the OTAU Platform of Actinius for always secure and up-to-date firmware

Interfaces— USB (via FTDI UART Bridge)
— up to 18x General Purpose IO
— up to 6x 12-bit, 200 ksps ADC with EasyDMA
— up to 4x SPI master/slave with EasyDMA (can be mapped to any pin)
— up to 4x I2C master/slave with EasyDMA (can be mapped to any pin; 1 preconfigured for on-board I2C peripherals and default I2C pin headers)
— up to 4x UART (also with CTS/RTS) with EasyDMA (can be mapped to any pin; 1 preconfigured for on-board USB-UART Bridge)
— I2S (Inter-IC Sound Interface) with EasyDMADigital microphone interface (PDM) with EasyDMA (can be mapped to any pin)
— 4x pulse width modulator (PWM) unit with EasyDMA (can be mapped to any pin)
— Serial Wire Debug (SWD) on 6-pin TagConnect footprint on top side plus programming pads on bottom side

Sensors and PeripheralsGPS
Low Power 3-axis accelerometer
General Purpose Button
Reset Button
Battery voltage reading
SPI NOR Flash 64Mbit

PowerCan be powered from any combination of USB, Battery, or VIN (eg solar panel)
Nominal Operating Input voltage: 4.35V - 10.2V
Max Input voltage (safety rating): 28V
Battery voltage: 3.2V - 4.2V
Over-voltage protection
Under-voltage protection
Low-noise, low power, switching power supply, with output up to 400mA
USB-friendly Li-Ion/LiPolymer charger with MPPT
Incredibly low power consumption

Physical CharacteristicsSize: 50.8 mm X 22.8 mm
Fully compatible form factor and pinouts with adafruit's FeatherWing spec

What's in the box
