Icarus SoM

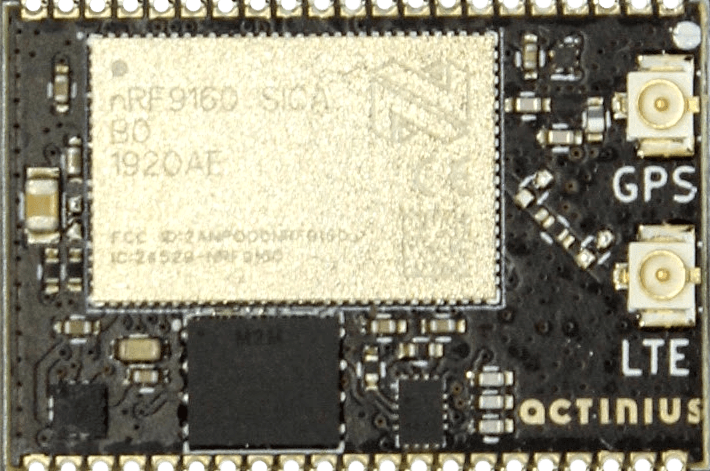

Icarus SoM (nRF9160)

This tiny coin-sized, easy-to-solder, Module adds cutting edge IoT connectivity to your product with minimal effort! It includes global LTE-M & NB-IoT, GPS, Accelerometer as well as an eSIM for connectivity out of the box. Lots of IO pins available as well -even to connect your own SIM externally!

LEARN MORE

More info

What the Icarus SoM is good at

Cellular IoT & GPS at the size of a coin

Connect your antennas and a single 3.3V power supply or battery and you have created a full fledged IoT device with GPS, motion detection and Cellular Connectivity, all with just this tiny self-contained module.

Easy to solder and use, even on 2-layer PCBs

The Icarus SoM is taking care of all the hard things about integrating the radio with its multi-layer PCB. Now the only thing you have to do is to design it in your own board -even with just 2 layers!

Low Power yet powerful CPU

Even though a current consumption of a few microAmps is easy to achieve with this module, the dedicated application CPU ARM M33 is plenty powerful for any edge application.

Global Connectivity

Access LTE-M and NB-IoT networks globally, easily, with the on-board eSIM. Do you need to integrate your own SIM or eSIM? Then you can use the external pins, or contact us to discuss customization possibilities.

What's in the box

Questions about the product? Contact us for help.
