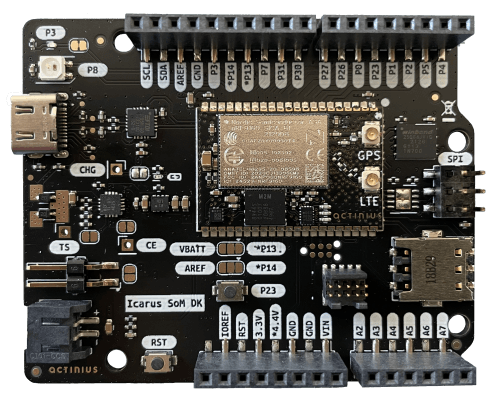

Icarus SoM DK

Developing for the Icarus SoM (nRF9160) has never been easier. The Icarus Dev KIT includes everything you need to jump straight into developing your next connected project with cellular connectivity (LTE-M and NB-IoT), GNSS (GPS), eSIM and nano-SIM, 3-axis accelerometer, NeoPixel RGB LED and LiPo Charger, all in a convenient full-featured Arduino form factor.

• Open CPU (can be used with custom firmware)
• Zephyr OS Support

Variant:

€119,49 (excl. VAT)

Get informed when we restock
_
200
+

You can pay with

Add to Cart
Stock level:
out of stock - more coming soon
Also available on
AdafruitDigikey

Secure checkout with

More info

What Icarus is good at

GPS and Cellular data on the go

Equipped with the nRF9160 modem from Nordic Semiconductor, the Icarus integrates GPS and Cellular data (LTE-M / NB-IoT) all in one.

3 Months of Free LTE-M & NB-IoT Data

The Icarus includes an eSIM with 10MB of free data for 3 months, so you can start testing your prototype immediately (*only in supported countries). After your free trial ends you can choose to get a subscription on actinius.io or use your own nano SIM!

Use the Icarus anywhere, anytime

Power comes in three: the Icarus board has input for a LiPo/Li-Ion battery (with charger!), USB, and Solar Panel input so that you can use the Icarus anywhere and anytime.

Arduino Form Factor Compatible

You can easily install extra components to the extension pins as the Icarus SoM DK is form-factor compatible with the Arduino boards.

Specifications

ProcessingARM® Cortex M33
1 MB Flash
256 kB RAM

ConnectivityNano SIM and Embedded SIM
LTE Cat-M1
LTE Cat-NB1 aka NB-IoT
Global coverage
PSM and eDRX are supported

SecurityARM® Trustzone®
ARM® Cryptocell 310
SSL/TLS
Supported by the OTAU Platform of Actinius for always secure and up-to-date firmware

Interfaces— USB (via FTDI UART Bridge)
— up to 18x General Purpose IO
— up to 6x 12-bit, 200 ksps ADC with EasyDMA
— up to 4x SPI master/slave with EasyDMA (can be mapped to any pin; 1 preconfigured for on-board SPI peripherals and default SPI pin headers)
— up to 4x I2C master/slave with EasyDMA (can be mapped to any pin; 1 preconfigured for on-board I2C peripherals and default I2C pin headers)
— up to 4x UART (also with CTS/RTS) with EasyDMA (can be mapped to any pin; 1 preconfigured for on-board USB-UART Bridge)
— I2S (Inter-IC Sound Interface) with EasyDMADigital microphone interface (PDM) with EasyDMA (can be mapped to any pin)
— 4x pulse width modulator (PWM) unit with EasyDMA (can be mapped to any pin)
— Serial Wire Debug (SWD) on standards 1.27mm connector

Sensors and PeripheralsGPS
Low Power 3-axis accelerometer
Neopixel RGB LED
General Purpose Button
Reset Button
Battery voltage reading
SPI NOR Flash 64Mbit

PowerCan be powered from any combination of USB, Battery, or VIN (eg solar panel)
Nominal Operating Input voltage: 4.35V - 10.2V
Max Input voltage (safety rating): 28V
Battery voltage: 3.2V - 4.2V
Over-voltage protection
Under-voltage protection
Low-noise, low power power supply, with output up to 400mA
USB-friendly Li-Ion/LiPolymer charger with MPPT
Low power consumption

Physical CharacteristicsSize: 68.5 mm X 55.2 mm
Form-factor and pin compatible with Arduino boards and shields

What's in the box
